Basic Introduction:
1. According to: IEC 61032:1997 / IEC 60529:2001 / IEC 60065 / IEC 60598  and UL.
2. IP3X Test Probe ( Test Probe C ) is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.

Technical parameters:
1. Rod length: 100 mm
2. Rod diameter: 2.5 mm
3. Circular-baffle diameter: 35 mm
4. Handle diameter: 10 mm
5. Handle length: 100 mm
6. According Standard: IEC 60529 Table 6 (the first characteristic digital 3)
7. Thrust: 3N

Application:
1. Standard test refers to the joint part can't touch the live parts or close to the dangerous parts. and 35mm circular baffle can not be enter.
2. In the test requirement for preventing access to the hazardous parts. Test Probe C need to be with push force 3±0.3N.

Purpose:
This probe is intended to verify the basic protection against access to hazardous parts. It's also used to verify the protection against access with a tool.

Note:
For without thrust products, please use with the push tension dynamometer.

Company Information

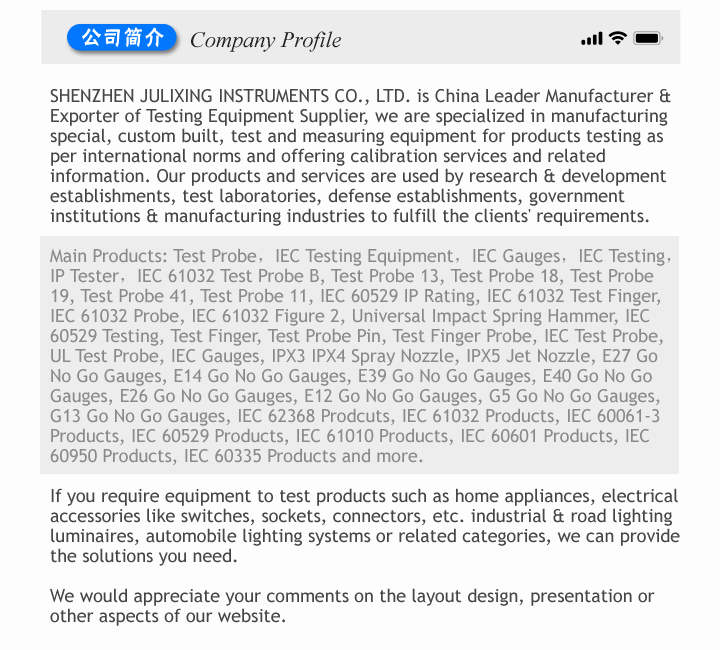

SHENZHEN JULIXING INSTRUMENTS CO., LTD. is China Leader Manufacturer & Exporter of Testing Equipment Supplier, we are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
